water filter Installation option
Installation Option JG-M

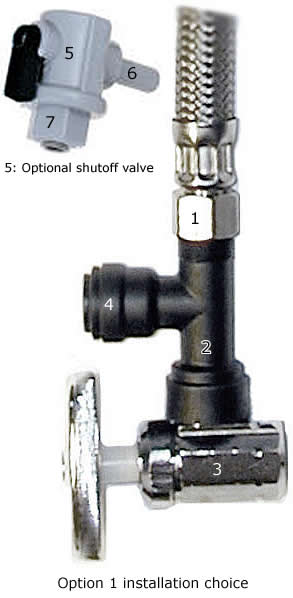

drinking water filters installiation JG-M Using JG/M tee is very simple, no plumbing knowledge required. Simply shut your cold water valve (3), remove the 3/8 in. faucet riser nut (1), screw JG/M (2) onto the valve then reattach the riser to the tee. The supplied drinking water system tube is simply pushed into the tee outlet (4). If your shutoff valve is not working properly an optional shutoff valve (5) can be attached onto the JG/M tee outlet (4) by simple push in stem (6) then the filter supply tube into valve outlet (7). This option is ideal for braided stainless steel or reinforced polyvinyl risers with built-in nut (1) as seen on the left photo.
